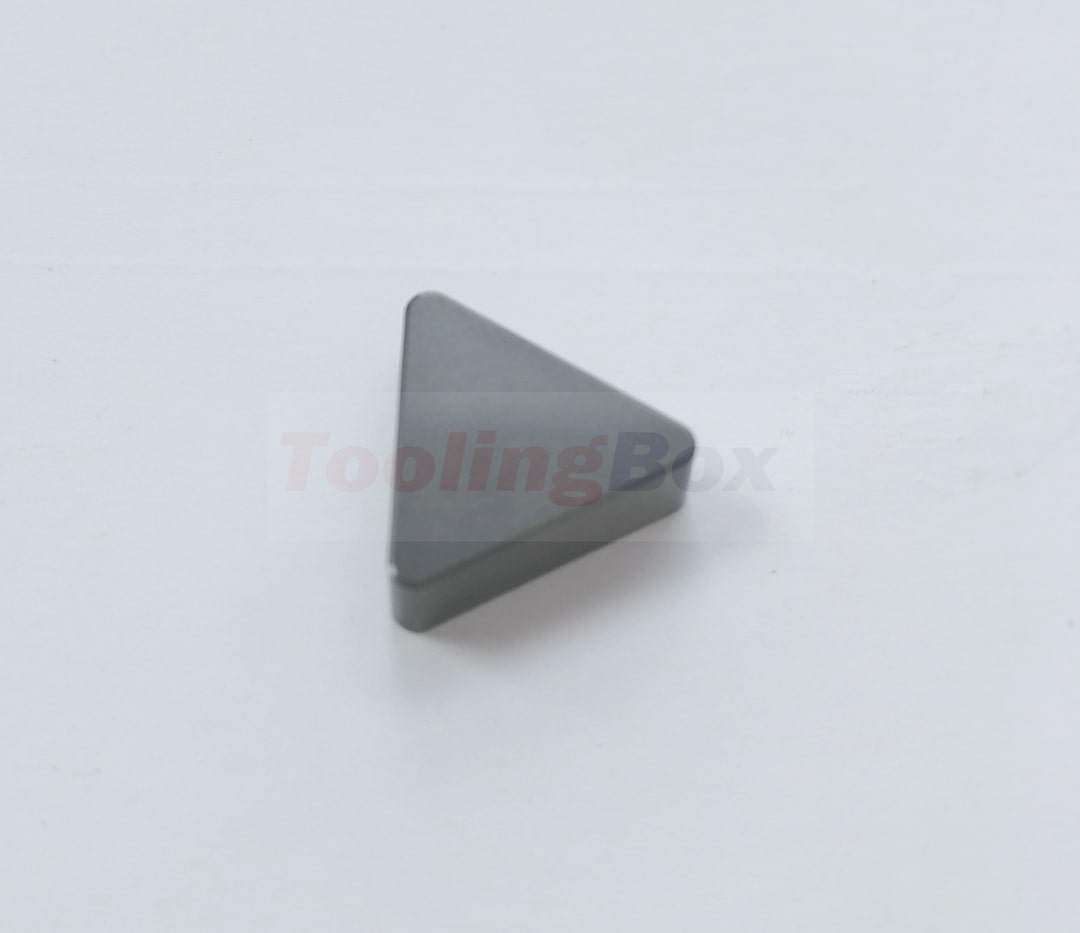

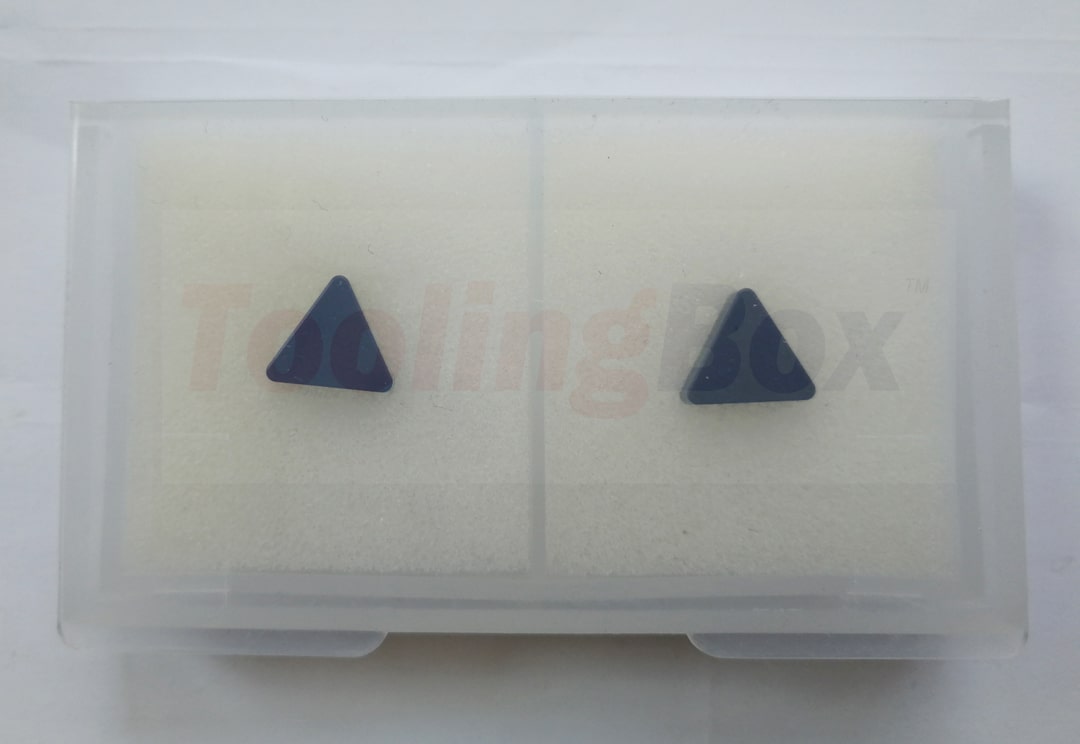

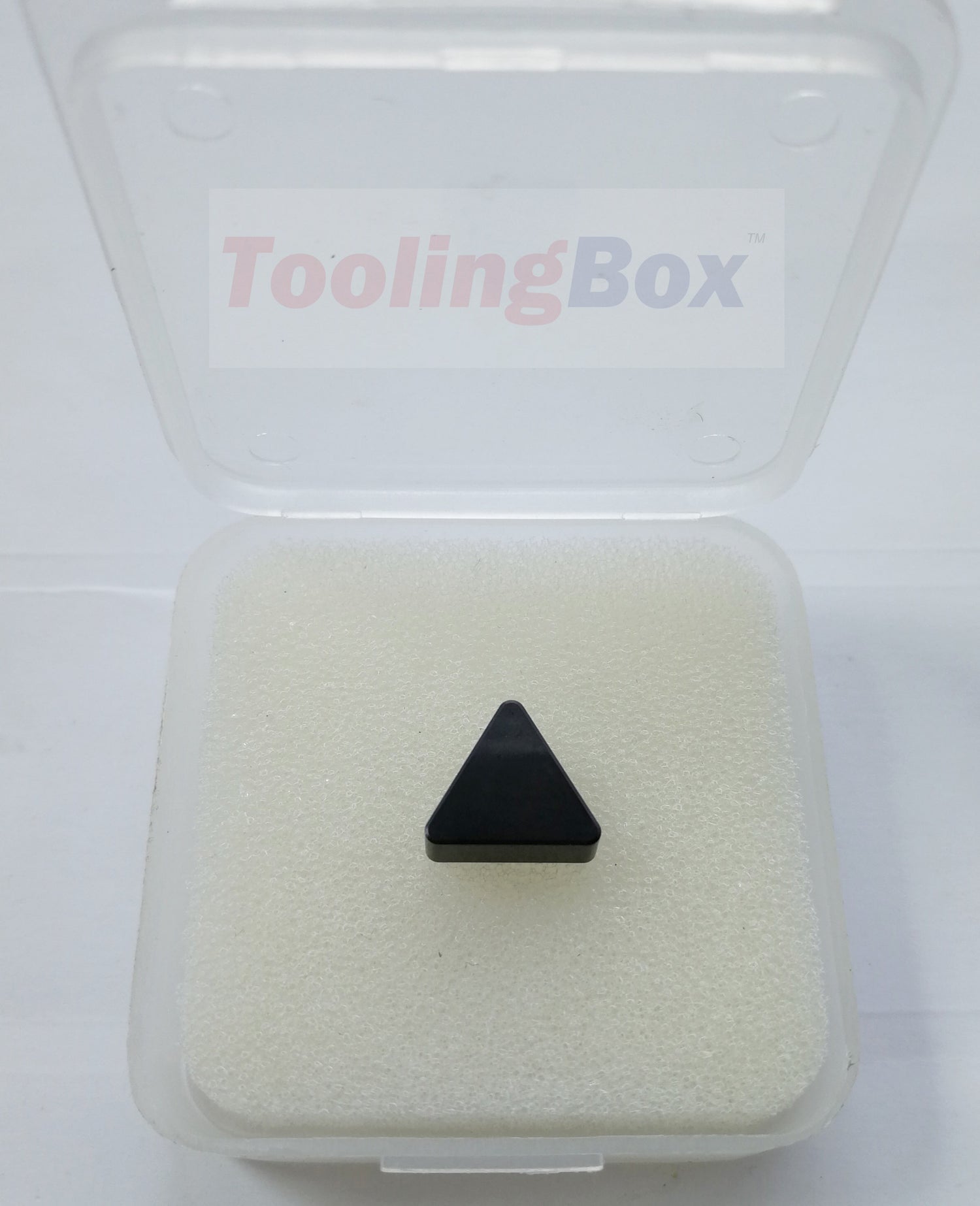

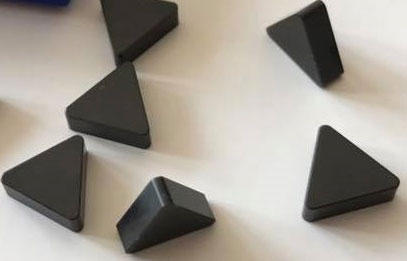

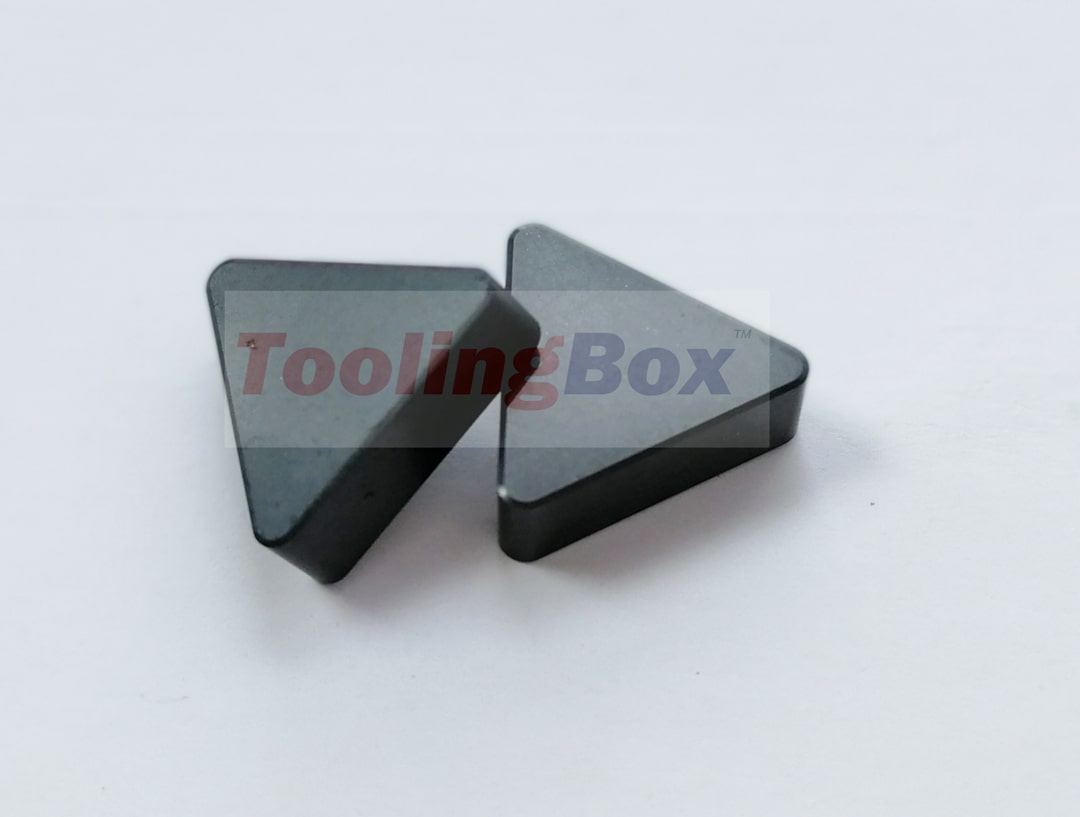

Solid CBN insert TNGN1604 TB400 for alloyed cast iron&alloy cast steel machining

• ISO size of the insert: TNGN1604XX
• CBN material grade: TB400
• cutting edge counts: 6
• Triangle side length：16.5 mm （0.65in）
• Insert thickness：4.16mm(3/16in)
• Fitting milling cutter type : 90° milling cutters
• Application: alloyed cast iron and alloy cast steel (such as rollers)
• machining process:   Rough milling or turning

CBN(Cubic Boron Nitride) grade TB400 is specially designed by ToolingBox (Beijing) Industrial Technology Co., Ltd for alloyed cast iron and alloy cast steel.

such as High chromium&chilled cast iron, rollers etc, with 50-70% pure PCBN content (2-4um particle size) in a metallic based binder which greatly helps in dissipating heat.

This CBN material can produce as good or better tolerances than conventional grinding with longer tool life and machining efficiency.

Recommended cutting data:

Vc up to 200m/min （ related to the dia of the roller);
F = 0.6-0.8;
Ap = 2-6mm for rough machining；

Better tool life with high effectiveness. Please visit us for more details via www. toolingbox.com
