  • Solid CBN insert CNMG1204 TB400 with 4 cutting edges

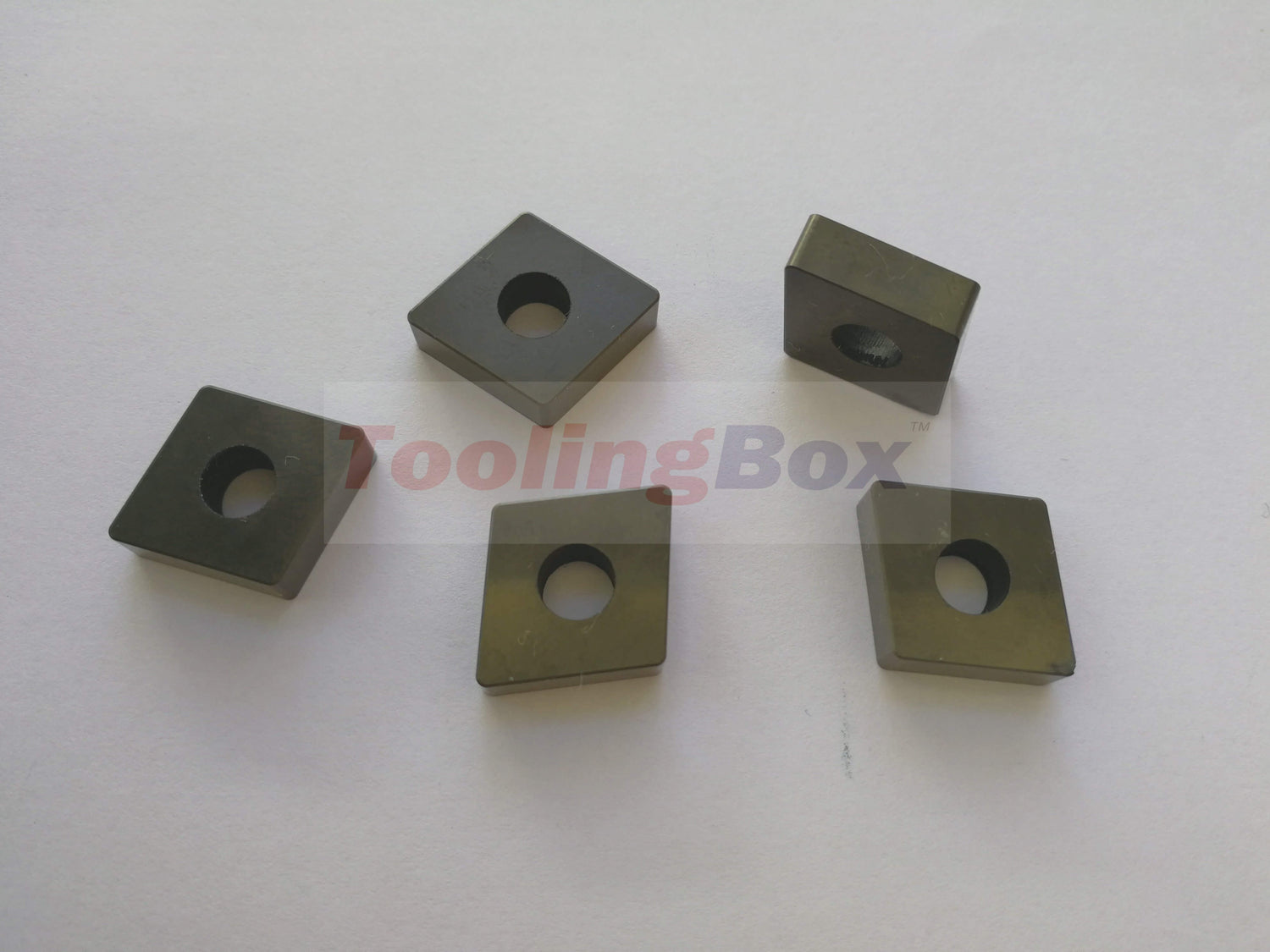

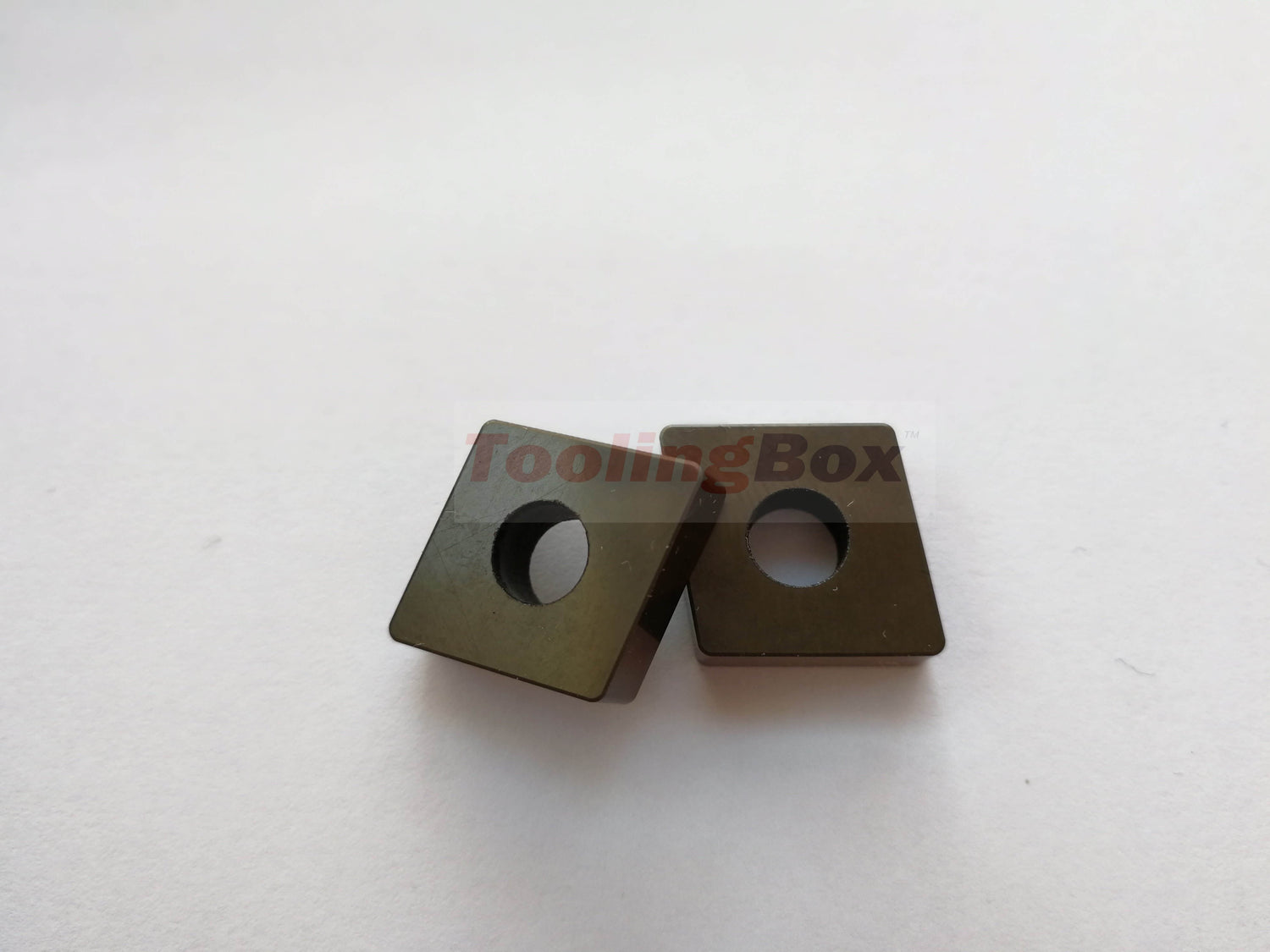

  • Solid CBN insert CNMG1204 TB400

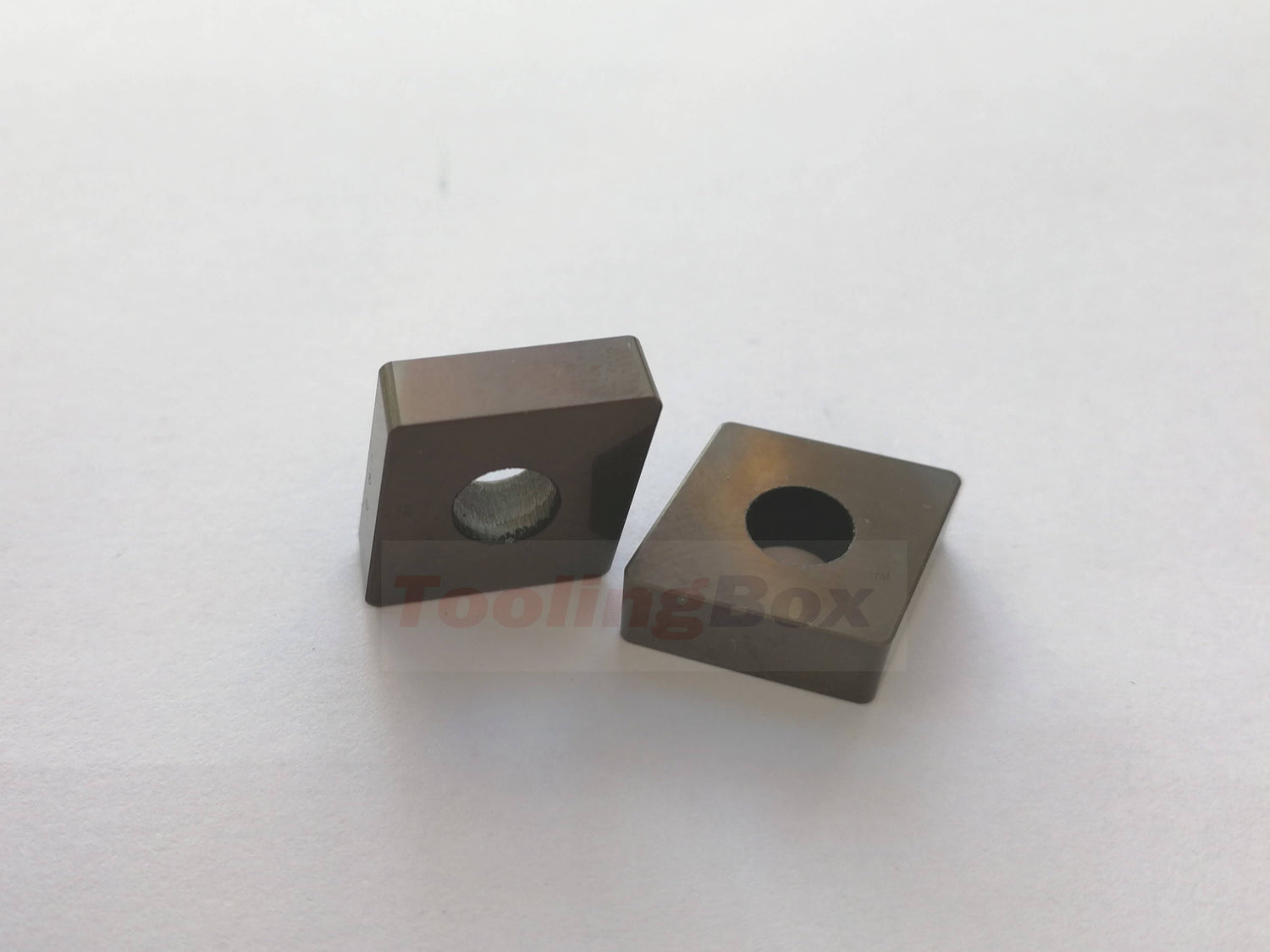

  • Solid CBN insert CNMG1204 TB400 with staight hole
  • Solid CBN insert CNMG1204 TB400 for alloy cast steel

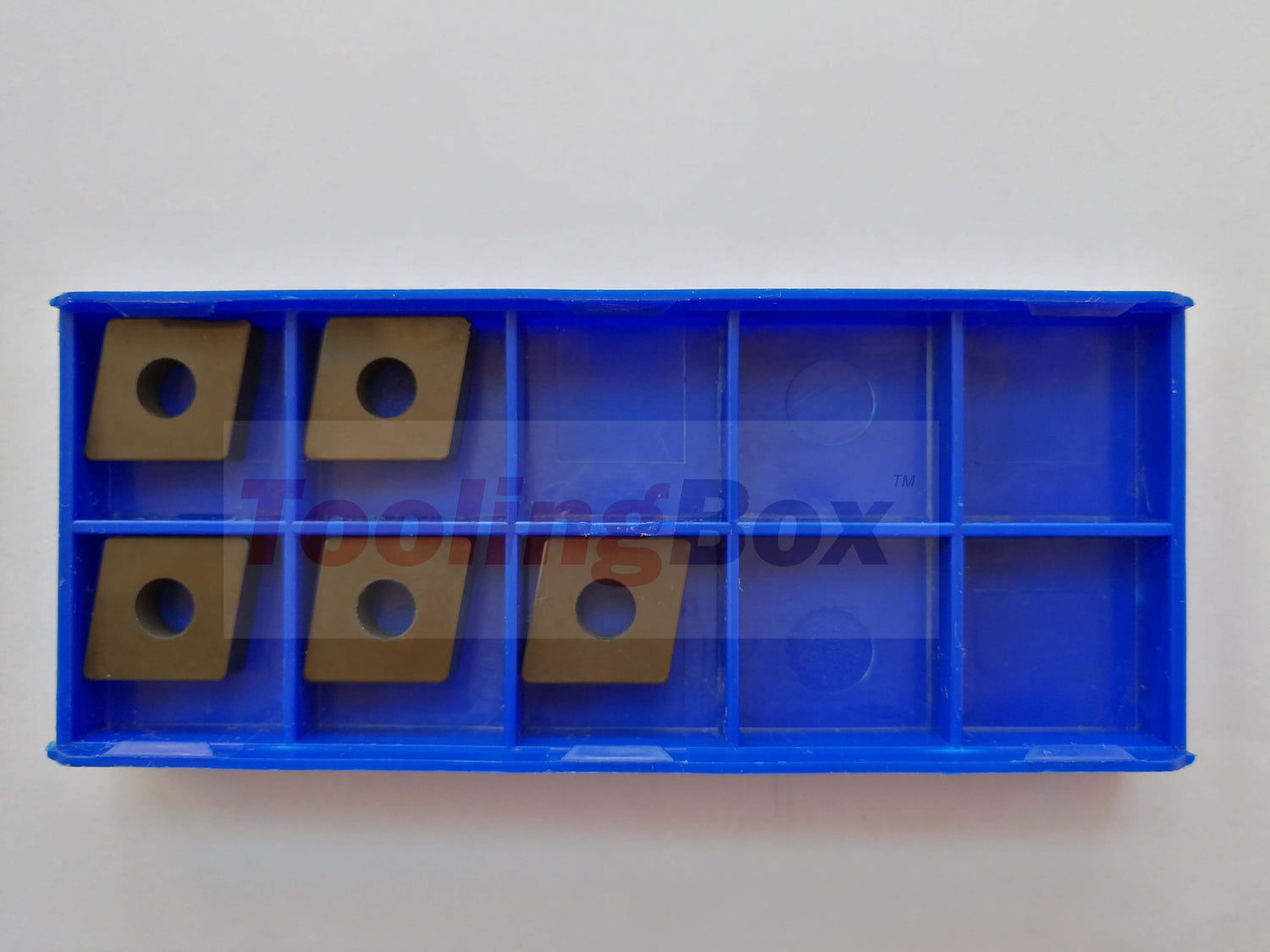

  • 10pcs packing Solid CBN insert CNMG1204 TB400

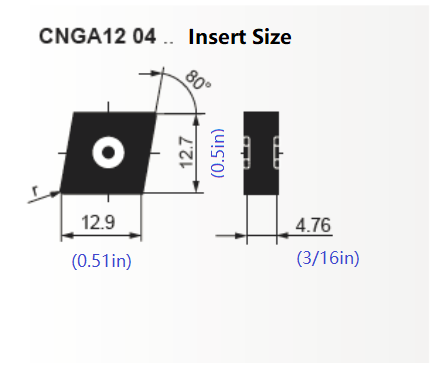

  • size of CNGA1204 solid CBN insert
1 of 6

ToolingBox

Solid CBN insert CNMG1204 TB400 for alloyed cast iron and alloy cast steel machining

Regular price
$22.90 USD
Regular price
Sale price
$22.90 USD
Shipping calculated at checkout.
Size

CBN(Cubic Boron Nitride) grade TB400 is specially designed by ToolingBox (Beijing) Industrial Technology Co., Ltd for alloyed cast iron and alloy cast steel,

such as High chromium&chilled cast iron, rollers etc, with 50-70% pure PCBN content (2-4um particle size) in a metallic based binder which greatly helps in dissipating heat.


CNMG1204 type solid CBN insert is full CBN with hole in center, if the machining stock is more than 1mm when machining cast iron material, the solid CBN type is much stronger than brazed type.



Revolution for milling cast iron material,especially for the brake disc machining.

Vc up to 1000m/min;

Fz up to 0.5;

Ap max to 4mm;

Better tool life with high effectiveness. Please visit us for more details via www. toolingbox.com
